OS                    Microsoft Windows 10
Network Technology    GSM / HSPA / LTE
Announced             2015, October. Released 2015, November
Dimensions            151.9 x 78.4 x 8.1 mm (5.98 x 3.09 x 0.32 in)
Weight                165 g (5.82 oz)
SIM                   Nano-SIM
Display Type          AMOLED
                      Size	            5.7 inches, 88.5 cm2 (~74.3% screen-to-body ratio)
                      Resolution	    1440 x 2560 pixels, 16:9 ratio (~518 ppi density)
                      Protection	    Corning Gorilla Glass 4
                      ClearBlack display
Chipset               Qualcomm MSM8994 Snapdragon 810 (20 nm)
CPU                   Octa-core (4x1.5 GHz Cortex-A53 & 4x2.0 GHz Cortex-A57)
GPU                   Adreno 430
Card slot             microSDXC (dedicated slot)
Memory                3GB
Internal Storage      32GB eMMC 5.0
Main Camera Single    20 MP, f/1.9, 26mm (wide), 1/2.4", 1.12µm, AF, OIS
                      Features              Zeiss optics, triple-LED RGB flash, panorama, HDR
                      Video                 4K@30fps, stereo sound rec., 1080p@30/60fps (after SW update)
Selfie camera Single  5 MP, f/2.4
                      Video	            1080p@30fps
Sound                 Loudspeaker	    Yes
                      3.5mm jack            Yes
                      WLAN                  Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot
                      Bluetooth             4.1, A2DP
                      Positioning           GPS, GLONASS, BDS
                      NFC                   Yes
                      Radio                 FM radio
                      USB                   USB Type-C 3.1
Sensors               Iris scanner, accelerometer, gyro, proximity, compass, barometer, sensor core
Features              Microsoft Continuum support
BATTERY               Type                  Li-Ion 3340 mAh, removable
                      Charging              18W wired
                      Wireless              (Qi) (market dependent)
                      Stand-by              Up to 288 h (2G) / Up to 288 h (3G)
                      Talk time             Up to 25 h (2G) / Up to 19 h (3G)
                      Music play            Up to 75 h
MISC                  Colors                Black, White
                      Price                 About 350 EUR
Performance           Basemark OS           II 2.0: 1472
                      Basemark X:           32178
                      Display Contrast ratio: Infinite (nominal), 3.837 (sunlight)
                      Loudspeaker           Voice 74dB / Noise 75dB / Ring 84dB
                      Audio quality         Noise -91.6dB / Crosstalk -89.3dB
                      Battery life          Endurance rating 62h


  • 2023.06.24 → Bought from local dealer for 40eur.
  • 2023.06.28 → Arrived in very good condition, like a new, but battery is fully discharged, it seems like it's charging fine, everything seems like working fine.

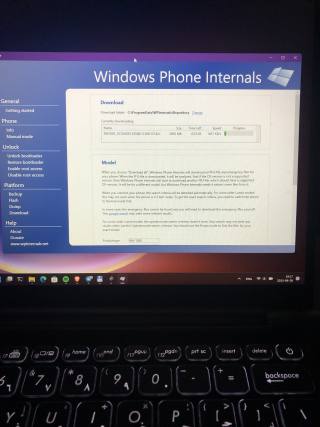

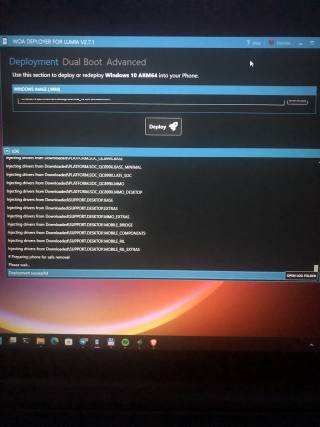

  • 2023.06.29 → Did full device backup, unlocked the boot loader and installed Windows 10 Build 19044 using WoA project (on desktop it shows 19041, i don't know why). It works pretty good, just need to remove all the bloatware that comes to Windows 10 by default.
  • 2023.06.29 → Managed to activate it with HWID (permantently) with this simple PowerShell command “irm https://massgrave.dev/get | iex”.
  • 2023.06.29 → I've bought Microsoft HD-500 Display Dock especially designed for Lumia 950/XL for 25eur.
  • 2023.07.01 → The dock arrived, have no time to test it yet.

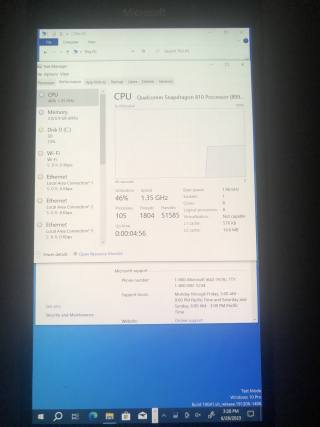

  • 2023.07.02 → Wrote software that shows cpu temperature on Lumia 950 and Lumia 950 XL. Because with the current workaround using PowerShell i was not very happy, coz it's so slowwwwww!!!
  • 2023.07.03 → Tested dock and it appears to be working fine. The HDMI produces full hd (1,920 x 1,080 pixels) output and charging over dock works fine. Have no time to check other periferals such as usb keyboard/mouse, but will test it soon too.
