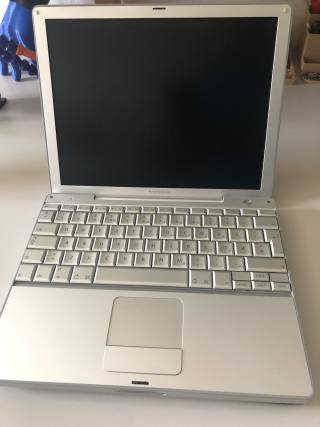

Powerbook G4 12" System information

Model Name: PowerBook G4 12"
Model Identifier: PowerBook6,8
Processor Name: PowerPC G4 (1.2)
Processor Speed: 1.5 Ghz
L2 Cache (per CPU): 512kb
Memory: 1.25 GB DDR SDRAM PC2700U25330
Bus Speed: 167 Mhz
Graphics Card: GeForce FX Go5200 AGP 64MB 1024x768

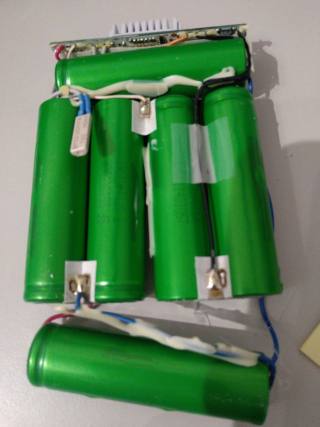

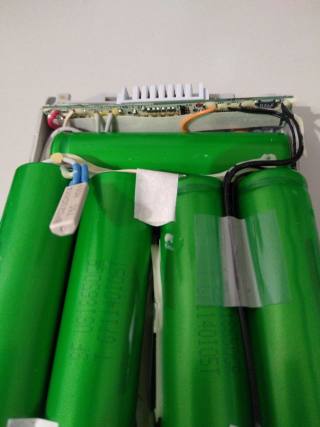

Battery Rebuilt

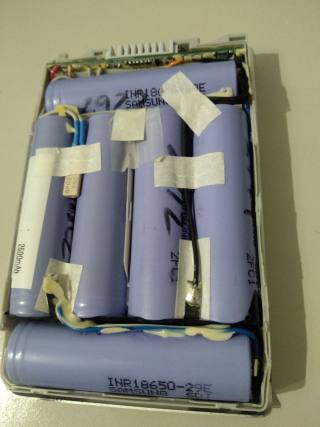

The whole rebuilt process have passed very easily, the case is easy to open if it's original and never refurbished, you have a lot of space to make mistakes, because the case are larger than the battery pack inside, so you can work without any stress thinking that rebuilt pack does not fit in it. Everything went ok. Now needs to calibrate it, charge at full 100% and discharge until powerbook sleeps, then charge it again to finish the calibration.
